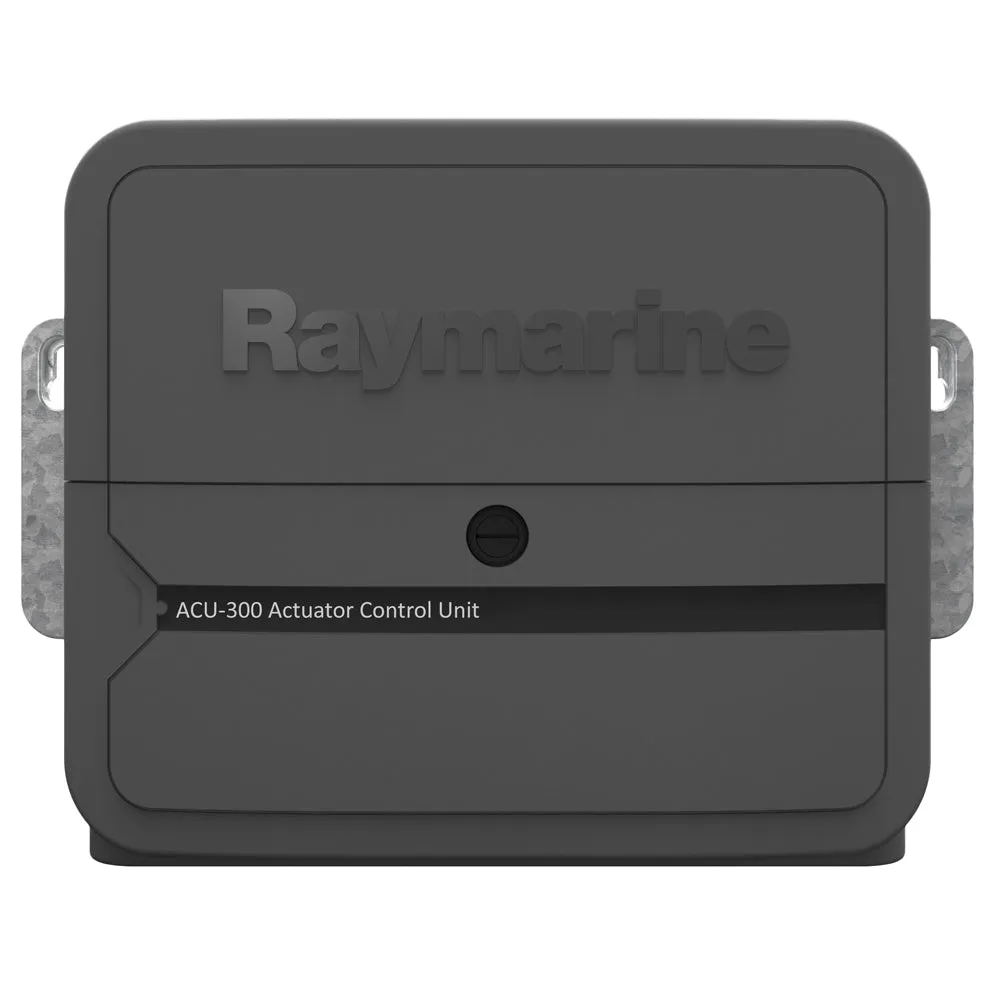

![Raymarine ACU-300 Actuator Control Unit f/Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps [E70139]](https://www.strapboat.shop/image/raymarine-acu-300-actuator-control-unit-fsolenoid-contolled-steering-systems-amp-constant-running-hydraulic-pumps-e70139_HKj5py_1.webp)
Autopilot Control Unit (ACU)
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.
Drive Current Output
Maximum continuous 5 Amps at supply voltage
Drive Clutch Output
No clutch connection
Connections
- Includes the M81105 Rotary Rudder Reference
- Sleep switch
- Power
- Solenoid drive out / return
- Ground
Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supplyt
20 mA (12V)
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalkng
Installation Environment
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Storage Temperature: -30°C to 70°C (-22°F to 158°F)
- Relative Humidity: MAX 93%
Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)
Conformance
- Europe: 2004/108/EC
- Australia and New Zealand: C-Tick, Compliance Level 2
Specifications:
- Type: Parts
- Box Dimensions: 8"H x 12"W x 17"L WT: 7.2 lbs
- UPC: 723193769140
